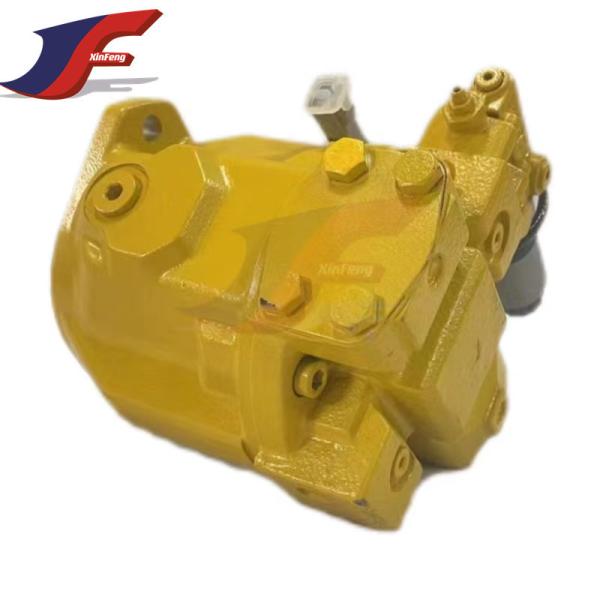

Hydraulic Fan Pump 259-0815 Group Piston for 330D 336D Excavator C9
Engine
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 191-7581 | [1] | SHAFT | |
| 2 | 8T-9597 | [1] | RING-RETAINING | |
| 3 | 194-9473 | [1] | RING | |
| 4 | 155-9125 | [1] | BEARING AS-ROLLER | |
| 5 | 213-9250 | [4] | SEAL-O-RING | |
| 6 | 9X-6032 M | [4] | BOLT-SOCKET HEAD (M10X1.5X30-MM) | |
| 7 | 191-7583 | [1] | BEARING-TAPERED | |
| 8 | 213-9248 | [1] | SEAL-O-RING | |
| 9 | 191-7582 | [1] | SHIM (2.5-MM THK) | |
| 10 | 266-7833 Y | [1] | ROTATING GP-PUMP | |
| 11 | 9S-8005 | [1] | PLUG (3/4-16-THD) | |
| 12 | 3K-0360 | [1] | SEAL-O-RING | |
| 13 | 155-9134 | [2] | PLATE | |
| 14 | 155-9127 | [1] | SEAL | |
| 15 | 155-9131 | [1] | SWASHPLATE | |
| 16 | 209-5982 Y | [1] | ACTUATOR GP | |
| 17 | 266-7835 | [1] | COVER | |
| 18 | 120-4394 | [1] | PLUG-BREAK OFF | |
| 19 | 137-3780 | [2] | PLUG | |
| 20 | 259-0908 | [2] | SEAL | |
| 21 | 204-2799 | [1] | DOWEL | |
| 22 | 266-7834 | [1] | HOUSING | |
| 23 | 9X-7680 | [3] | SEAL-O-RING | |
| 24 | 8T-8442 M | [4] | BOLT-SOCKET HEAD (M6X1X30-MM) | |
| 25 | 259-0907 Y | [1] | VALVE GP-PUMP CONTROL (HYDRAULIC FAN) | |
| | M | | METRIC PART | |
| | Y | | SEPARATE ILLUSTRATION | |
| | | | | |
Advantages
Warehouse Display
We can supply huge stock for excavator spare parts ( various brands
) :
Hydraulic parts: hydraulic pump assy , hydraulic pump parts(block
assy, plate valve, guide retainer, retainer shoe, piston sub assy,
cradle assy--cradle, cam rocker), swing motor, swing machinery,
swing circle, main control valve, travel motor, boom cylinder, arm
cylinder, bucket cylinder ,hydrualic valve and so on.
Engine parts : piston liner kits, main &con rod bearings,
valves, cylinder gasket kits, plunger/delivery
valve/nozzle,cylinder
block, cylinder head, crankshaft, camshaft, starting motor, oil
/water / feed pump, fan blade, turbocharger,thermostat and so on.
electric parts:Computer board, monitor, engine line speed,
hydraulic pump line speed, starter motor, pressure switch.
FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.
2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998
3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.
4.What is the warranty of the products?
A:The warranty is 6/12 Months based on the specific product.
5.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter
getting payment. lf not in stock, we will inform you thetime
requlred.
6.Which shipping term you can supply?
A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)
7.What is your MOQ?
A:Small order and sample order are acceptable
8.Do you have any After-Sales service?
A:Yes!Our
