    Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F

    Ask Lasest Price
    Brand Name :
    Model Number : E336D 336D2 336E 336F
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500-Sets/month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

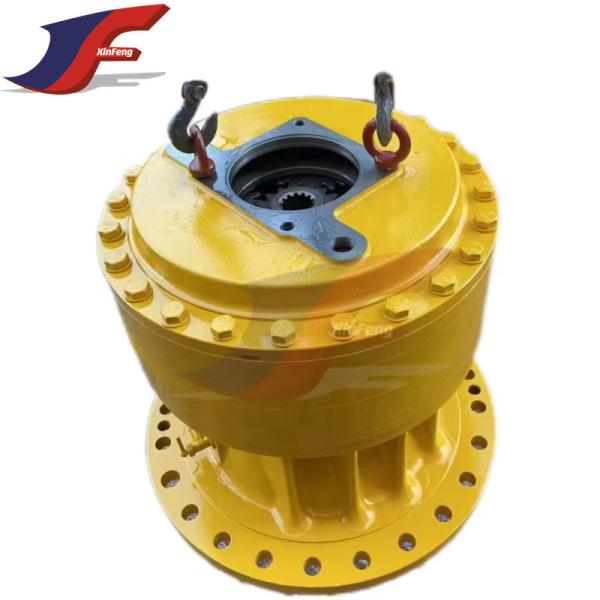

    Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F

    E336D 333-2959 Swing Drive Group Reduction Gearbox for E336D 336D2 336E 336F


    Product Descriptio

    Pos.Part NoQtyParts name
    14H-6112[1]BREATHER (SWING DRIVE)
    26V-7238[1]VALVE-SHUTOFF (SWING DRIVE)
    37I-7611[1]CAGE
    47I-7619[1]BEARING-ROLLER
    57I-7684 M[2]SPACER (50X79.6X6-MM THK)
    69U-8693[1]BEARING-ROLLER
    7093-1730[1]RING-RETAINING
    8094-1528[8]WASHER (53X84X1-MM THK)
    9096-1441[1]RING-RETAINING
    10110-7149[1]RING-RETAINING
    11114-1322[1]RING-RETAINING
    12114-1398[1]GAUGE-OIL LEVEL (SWING DRIVE)
    13114-1399[1]PIPE-GAUGE
    14127-3872 I[1]HOSE AS
    15136-2802[2]CONNECTOR
    16136-2803[2]CLIP
    17148-4600[1]GEAR-SUN (17-TEETH)
    18148-4601[1]GEAR-SUN (17-TEETH)
    19148-4602[4]GEAR-PLANETARY (24-TEETH)
    20148-4603[4]GEAR-PLANETARY (24-TEETH)
    21148-4604[1]GEAR-RING (67-TEETH)
    22148-4605[1]SHAFT-PINION
    23418-6218[1]CARRIER-PLANETARY
    24148-4608[4]SHAFT-PLANETARY
    25148-4609[4]SHAFT-PLANETARY
    26148-4611[8]WASHER (71.3X112X1-MM THK)
    27171-9413[1]SPACER (140.5X160X103.2-MM THK)
    28191-2511[1]CARRIER-PLANETARY
    29191-2513[4]BEARING AS-ROLLER
    30191-2514[8]BEARING AS
    31191-2524[1]HOUSING
    32199-4540[1]COVER-HOUSING
    33227-6215[1]BOSS (1/4-18-THD)
    34099-5194[8]PIN-SPRING
    35128-9170[2]SEAL-LIP TYPE
    363K-0360[1]SEAL-O-RING
    375M-4454[1]SEAL-O-RING
    38453-3447 M[10]BOLT (M12X1.75X40-MM)
    39451-2182[12]WASHER-HARD (13.5X25.5X3-MM THK)
    408T-4244 M[1]NUT (M12X1.75-THD)
    418T-4956 M[1]BOLT (M12X1.75X35-MM)
    42453-4169 M[24]BOLT (M16X2X200-MM)
    43451-2175[24]WASHER-HARD (17.5X30X3.5-MM THK)

     1U-8846 BF SEALANT-GASKET
     B USE AS REQUIRED
     F NOT SHOWN
     I REFER TO HYDRAULIC INFORMATION SYSTEM
     M METRIC PART


    3332959 DRIVE GP-SWING Parts scheme



    About Xinfeng Machinery (XF) parts:




    Drive Swing Redution Gearbox Part 333-2959 E336D 336D2 336E 336F

    Advantages


    Warehouse Display


    Packaging and Delivery



    FAQ
    1.How to quickly and accurately buy products what lneeded?
    A:Provide the original parts number to us to check.

    2.How long have you been in the excavator
    A:We are engaged in excavator parts since 1998


    3.lfI don't know the part number,what shouldI do?
    A:Please send us size and pictures of old products.

    4.What is the warranty of the products?
    A:The warranty is 6/12 Months based on the specific product.


    5.How long is your delivery time?
    A:The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

    6.Which shipping term you can supply?

    A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)


    7.What is your MOQ?
    A:Small order and sample order are acceptable


    8.Do you have any After-Sales service?
    A:Yes!Our
