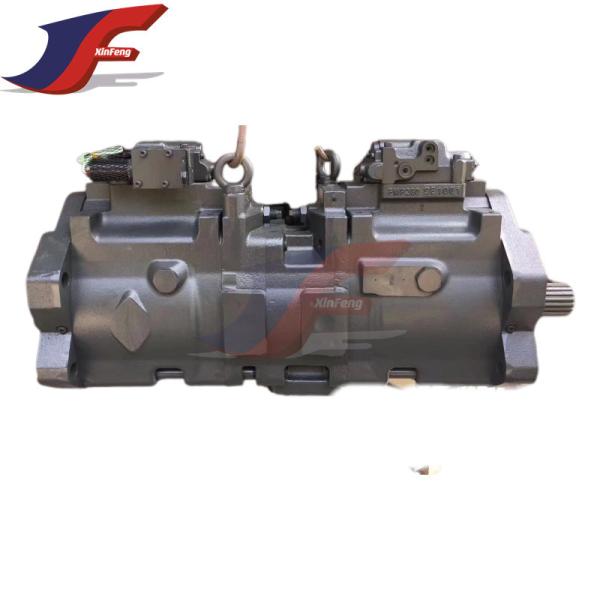

Excavator Main Pump For Volvo EC700 Hydraulic Pump VOE14621492 Kawasaki K3V280

Ask Lasest Price
Brand Name :	EC700B, EC700BHR, EC700C, EC700CHR
Model Number :	Kawasaki
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500-Sets/month
Delivery Time :	3-5 days
MOQ :	1 Piece

Add to Cart

Product Details
Company Profile

Excavator Main Pump For Volvo EC700 Hydraulic Pump VOE14621492 Kawasaki K3V280

Hydraulic Pump

Excavator Main Pump For Volvo EC700 Hydraulic Pump VOE14621492 Kawasaki K3V280

Product Descriptio

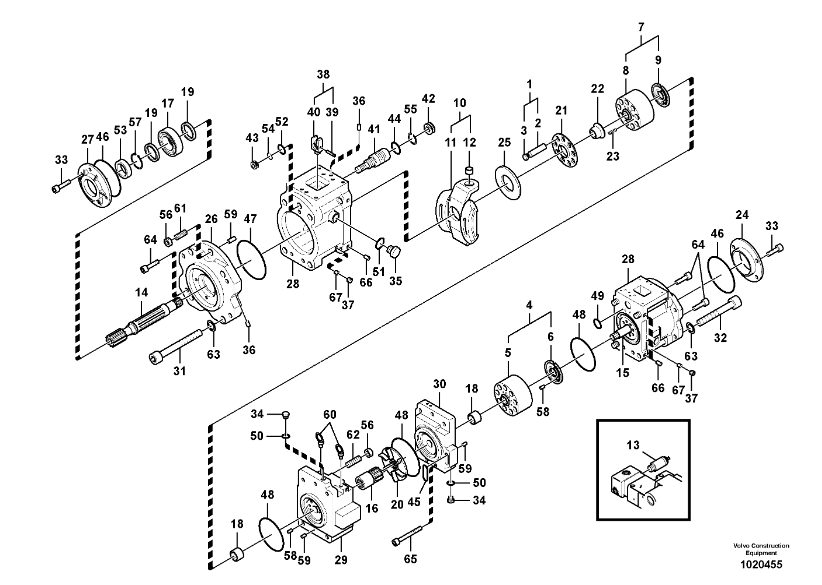

Pos.	Part No	Qty	Parts name	Comments
	VOE14621492	[1]	Pump
1	VOE14535198	[2]	Piston
2		[18]	Piston
3		[18]	Cylinder
4	VOE14535200	[1]	Cylinder	LH
5	VOE14535157	[1]	Cylinder Block
6	VOE14535174	[1]	Plate
7	VOE14535199	[1]	Cylinder	RH
8	VOE14535157	[1]	Cylinder Block
9	VOE14535173	[1]	Plate
10	VOE14535201	[2]	Plate
11	VOE14535164	[1]	Plate
12	VOE14535165	[1]	Bushing
13	SA8230-32080	[1]	Valve
14	VOE14535150	[1]	Shaft
15	VOE14535151	[1]	Shaft
16	VOE14535152	[1]	Coupling
17	VOE14535153	[2]	Bearing
18	VOE14535154	[2]	Bearing
19	VOE14535155	[4]	Spacer
20	VOE14535156	[1]	Valve
21	VOE14535160	[2]	Plate
22	VOE14535161	[2]	Bushing
23	VOE14535162	[0018]	Spring
24	VOE14535169	[1]	Cover
25	VOE14535163	[2]	Plate
26	VOE14535166	[2]	Support
27	VOE14535168	[1]	Cover
28	VOE14535170	[2]	Casing
29	VOE14662778	[1]	Cover
30	VOE14662777	[1]	Cover
31	VOE14535175	[4]	Screw
32	VOE14535176	[4]	Screw
33	VOE13967630	[8]	Allen Hd Screw
34	VOE14883837	[4]	Plug
35	SA9415-11051	[4]	Plug
36	VOE14560637	[31]	Plug
37	VOE14512382	[5]	Plug
38	VOE14535202	[2]	Pin
39	VOE14535180	[0001]	Pin
40	VOE14535184	[0001]	Pin
41	VOE14535181	[2]	Piston
42	VOE14535182	[2]	Plug
43	VOE14554962	[2]	Stop
44	VOE14535185	[2]	O-ring
45	VOE14535186	[1]	O-ring
46	VOE14535187	[2]	O-ring
47	VOE14535188	[4]	O-ring
48	VOE14535189	[1]	O-ring
49	VOE14533604	[19]	O-ring
50	VOE14533606	[2]	O-ring
51	VOE14533612	[4]	O-ring
52	VOE14533611	[2]	O-ring
53	VOE14535190	[1]	Seal
54	VOE14535191	[2]	Ring
55	VOE14535192	[2]	Ring
56	SA9111-12000	[4]	Nut
57	SA9541-01055	[2]	Retaining ring
58	VOE14551525	[2]	Pin
59	VOE14535193	[5]	Pin
60	VOE14535194	[2]	Bolt
61	VOE14535195	[2]	Screw
62	VOE14535196	[2]	Screw
63	VOE14535167	[8]	Washer
64	VOE984349	[4]	Hex. socket screw
65	VOE984351	[4]	Hex. socket screw
66	VOE14535197	[8]	Screw
67	VOE14535179	[4]	Plate
100	VOE14554943	[1]	Seal

Hydraulic pump	Cylinder block	Press pin	Valve plate	Barrel washer
Piston motor	Piston shoe	Snap ring	Shoe plate	Oil seal
Piston pump	Retainer plate	Coil spring	Bearing plate	Friion plate
Gear pump	Ball guide	Disk spring	Swash plate	Steel plate

Hydraulic Pumps, Concrete Pump Spare Parts, Excavator Spare Parts, Hydraulic Pump Spares, Soil Compactor Spares and many more. We are also a Service Provider of Pump Repair Service. Hydraulic Piston Pump Cylinder Block Piston Set Valve plate RH / LH set plate Ball Guide Bush (Bearing Seat) Drive Shaft Bearing Seal Kit

We can supply you all kinds of excavator spare parts as following:

1.Hydraulic parts: hydraulic pump, main control valve, hydraulic cylinder, final drive, travel motor, swingmotor,gear box, slewing bearing etc.

2.Engine parts: engine assy, piston, piston ring, cylinder block, cylinder head

crankshaft, turbocharger,fuel injection pump, starting motor and alternator etc.

3.Undercarriage parts: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion,coil adjuster,rubber track and pad etc.

4.Cab parts: operator’s cab assy, wiring harness, monitor, controller, seat, door etc.

Product Paramenters

Maintenance

1. Filter replacement: Regularly replace the filter of the hydraulic pump to prevent impurities from entering the inside of the pump. Follow the manufacturer's recommendations or instructions in your maintenance manual for filter replacement.
2. Hydraulic oil replacement: Regularly replace the hydraulic oil of the hydraulic pump to maintain its normal lubriion and cooling performance. Use the manufacturer's recommended hydraulic oil specifiions and follow recommended change intervals.
3. Clean the cooler: The cooler of the hydraulic pump may accumulate dust, sludge or other impurities, which affects the heat dissipation effect. Clean the cooler regularly to ensure its surfaces are clean and well ventilated.
4. Keep the hydraulic system clean: Keep the excavator hydraulic system clean to avoid impurities entering the hydraulic pump. Clean hydraulic tanks and lines regularly to prevent the accumulation of contaminants.

About Xinfeng Machinery (XF) parts:

Excavator Main Pump For Volvo EC700 Hydraulic Pump VOE14621492 Kawasaki K3V280

Advantages

Warehouse Display

Packaging and Delivery

FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.

2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998

3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.

4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.

5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6. Which shipping term you can supply?

A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)

7. What is your MOQ?
A: Small order and sample order are acceptable

8. Do you have any After-Sales service?
A: Yes!Our
