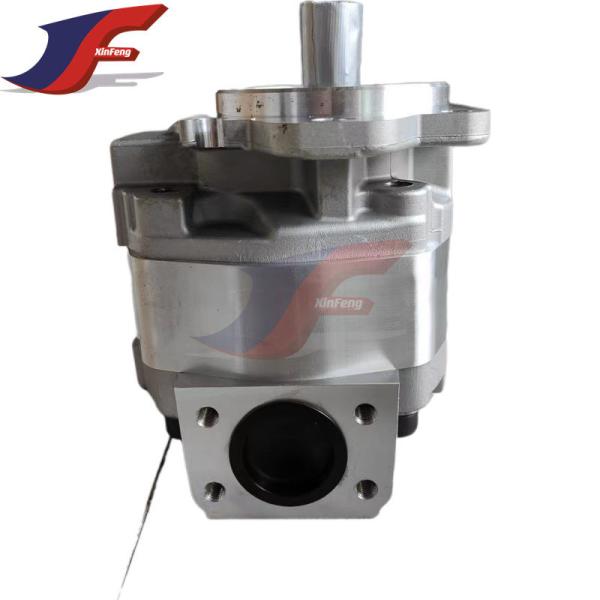

Komatsu Hydraulic Gear Oil Pump 705-11-38010 For D65 D85 Excavator
Parts
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
| | [1] | PUMP ASSY,(SAR80) Komatsu OEM | 13.242 kg. |
| ["SN: 50001-UP"] analogs:["7051238011", "7052238050"] |$0. | | | |
| 1 | | [1] | BRACKET ASSY Komatsu | 3 kg. |
| ["SN: 50001-UP"] analogs:["7051703020", "7051703022"] | | | |
| 1 | | [2] | BUSHING,PLANE Komatsu China | 0.05 kg. |
| ["SN: 50001-UP"] analogs:["7051703351"] | | | |
| 2 | | [1] | CASE,GEAR Komatsu | 2.584 kg. |
| ["SN: 50001-UP"] | | | |
| 3 | | [1] | COVER ASSY Komatsu | 2.66 kg. |
| ["SN: 50001-UP"] | | | |
| 4 | | [1] | GEAR,DRIVE Komatsu | 1.78 kg. |
| ["SN: 50001-UP"] | | | |
| 5 | | [1] | GEAR,DRIVEN Komatsu | 1.171 kg. |
| ["SN: 50001-UP"] | | | |
| 6 | | [2] | PLATE,SIDE Komatsu OEM | 0.184 kg. |
| ["SN: 50001-UP"] | | | |
| 7 | | [2] | SEAL Komatsu China | 0.05 kg. |
| ["SN: 50001-UP"] analogs:["7051703473"] | | | |
| 8 | | [2] | RING,BACK-UP Komatsu China | 0.05 kg. |
| ["SN: 50001-UP"] analogs:["7051703443"] | | | |
| 9 | | [2] | O-RING Komatsu China | 0.05 kg. |
| ["SN: 50001-UP"] analogs:["7051703381"] | | | |
| 10 | | [4] | PIN,DOWEL Komatsu | 0.026 kg. |
| ["SN: 50001-UP"] analogs:["21T3016190"] | | | |
| 11 | | [4] | BOLT Komatsu | 0.245 kg. |
| ["SN: 50001-UP"] analogs:["0125361625"] | | | |
| 12 | | [4] | WASHER Komatsu | 0.021 kg. |
| ["SN: 50001-UP"] | | | |
| 13 | | [1] | SEAL,OIL Komatsu | 0.03 kg. |
| ["SN: 50001-UP"] analogs:["7051703811"] | | | |
| 14 | | [1] | PLATE Komatsu | 0.02 kg. |
| ["SN: 50001-UP"] | | | |
| 15 | | [1] | RING,SNAP Komatsu China | 0.009 kg. |
| ["SN: 50001-UP"] analogs:["802250552"] | | | |
Product Description
The most basic form of a gear pump is that two gears of the same
size mesh and rotate with each other in a closely fitting casing.
The interior of this casing is similar to an "8" shape. The two
gears are installed inside. The outer diameter and sides of the
gears are in contact with the casing. The body fits closely. The
material from the extruder enters between the two gears at the
suction port and fills this space. It moves along the housing as
the teeth rotate, and is finally discharged when the two teeth
mesh.
We can supply huge stock for excavator spare parts ( various brands
) :
Hydraulic parts: hydraulic pump assy , hydraulic pump parts(block
assy, plate valve, guide retainer, retainer shoe, piston sub assy,
cradle assy--cradle, cam rocker), swing motor, swing machinery,
swing circle, main control valve, travel motor, boom cylinder, arm
cylinder, bucket cylinder ,hydrualic valve and so on.
Engine parts : piston liner kits, main &con rod bearings,
valves, cylinder gasket kits, plunger/delivery
valve/nozzle,cylinder
block, cylinder head, crankshaft, camshaft, starting motor, oil
/water / feed pump, fan blade, turbocharger,thermostat and so on.
electric parts:Computer board, monitor, engine line speed,
hydraulic pump line speed, starter motor, pressure switch.
Excavator spare parts in full-scale are available;
100% quality assurance, develop and manufacture follow original
ones
Quick response within 24 hours
Small order allowed
Reasonable stock and timely delivery
Excellent After-sales service.
FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998
3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter
getting payment. lf not in stock, we will inform you thetime
requlred.
6. Which shipping term you can supply?
A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes!Our
