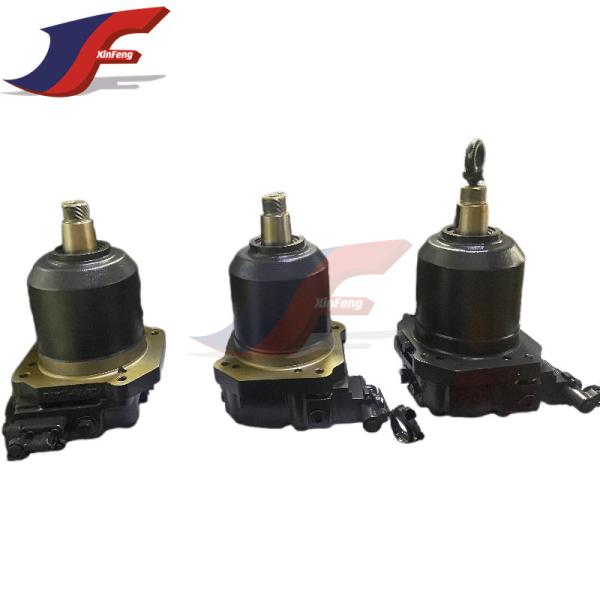

Komatsu D375 D475 fan pump fan motor 708-1W-00690 708-7H-00680
708-7H-11410
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
| 708-7H-00613 | [1] | Motor Assembly Komatsu | 66 kg. |
| | | | ["SN: 30147-UP"] analogs:["7087H00612"] |$0. | |
| 1. | 07000-A5160 | [1] | O-ring Komatsu China | |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 2. | 04020-01638 | [1] | Pin, Dowel Komatsu | 0.064 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 3. | 01011-61600 | [6] | Bolt Komatsu | 0.188 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] analogs:["801014198", "0101151600",
"0101131600", "0101181600"] | |
| 4. | 01643-51645 | [6] | Washer Komatsu | 0.021 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 5. | 708-7H-12910 | [1] | Shaft Komatsu China | |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 6. | 708-8H-32150 | [1] | Bearing Komatsu | 0.57 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 7. | 708-8H-32140 | [1] | Bearing Komatsu | 0.35 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 8. | 708-8H-05030 | [1] | Spacer Kit Komatsu | 0.11 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 9. | 708-1F-12281 | [1] | Seal, Oil Komatsu | 0.1 kg. |
| | | | ["SN: 30147-UP"] analogs:["7081F12280"] | |
| 10. | 708-8H-32160 | [1] | Spacer Komatsu | 0.05 kg. |
| | | | ["SN: 30147-UP"] | |
| 11. | 04065-07825 | [1] | Ring, Snap Komatsu | 0.022 kg. |
| | | | ["SN: 30147-UP"] | |
| 12. | 708-7H-13720 | [1] | Block Komatsu China | |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 13. | 708-7H-13250 | [1] | Plate Komatsu China | |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 14. | 708-18-13230 | [1] | Pin Komatsu | 0.01 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 15. | 708-2H-23360 | [3] | Pin Komatsu | 0.006 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 16. | 708-2H-23130 | [1] | Seat Komatsu | 0.157 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 17. | 708-2H-33120 | [1] | Spring Komatsu China | |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 18. | 708-2H-23141 | [1] | Seat Komatsu | 0.03 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 19. | 04065-05820 | [1] | Ring, Snap Komatsu | 0.01 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 20. | 708-2H-23350 | [1] | Guide, Retainer, Retainer Komatsu | 0.24 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] analogs:["R7082H23350"] | |
| 21. | 708-2H-33350 | [1] | Retainer, Shoe Komatsu | 0.415 kg. |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 22. | 708-7H-13910 | [9] | Piston Subassembly Komatsu China | |
| | | | ["SN: 30147-UP", "SCC: C2"] | |
| 23. | 708-7H-13430 | [1] | Plate Komatsu China | |
Advantages
We can supply huge stock for excavator spare parts ( various brands
) :
Hydraulic parts: hydraulic pump assy , hydraulic pump parts(block
assy, plate valve, guide retainer, retainer shoe, piston sub assy,
cradle assy--cradle, cam rocker), swing motor, swing machinery,
swing circle, main control valve, travel motor, boom cylinder, arm
cylinder, bucket cylinder ,hydrualic valve and so on.
Engine parts : piston liner kits, main &con rod bearings,
valves, cylinder gasket kits, plunger/delivery
valve/nozzle,cylinder
block, cylinder head, crankshaft, camshaft, starting motor, oil
/water / feed pump, fan blade, turbocharger,thermostat and so on.
electric parts:Computer board, monitor, engine line speed,
hydraulic pump line speed, starter motor, pressure switch.
Warehouse Display
FAQ
1.How to quickly and accurately buy products what lneeded?
A:Provide the original parts number to us to check.
2.How long have you been in the excavator
A:We are engaged in excavator parts since 1998
3.lfI don't know the part number,what shouldI do?
A:Please send us size and pictures of old products.
4.What is the warranty of the products?
A:The warranty is 6/12 Months based on the specific product.
5.How long is your delivery time?
A:The normal delivery time is 3-5 days for stock sproductsafter
getting payment. lf not in stock, we will inform you thetime
requlred.
6.Which shipping term you can supply?
A:By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)
7.What is your MOQ?
A:Small order and sample order are acceptable
8.Do you have any After-Sales service?
A:Yes!Our
