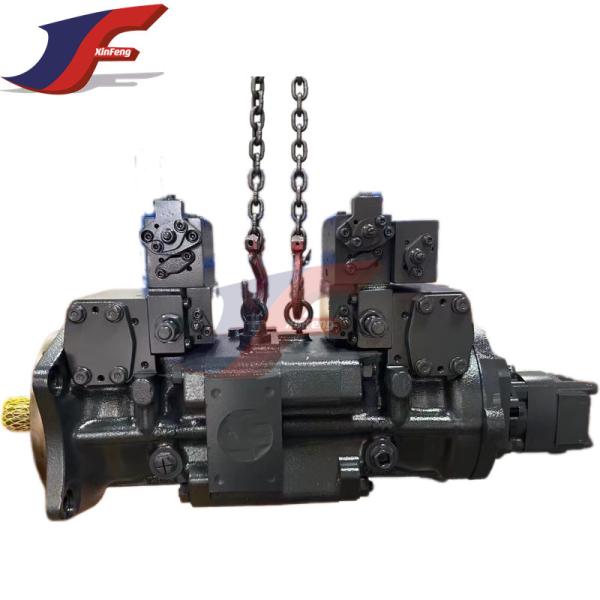

Excavator Parts Komatsu 708-2L-00681 708-2L-00680 PC1250-8 Hydraulic Pump

Ask Lasest Price
Brand Name :	Komatsu
Model Number :	PC1250 PC1250-8
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500-Sets/month
Delivery Time :	3-5 days

Add to Cart

Product Details
Company Profile

Excavator Parts Komatsu 708-2L-00681 708-2L-00680 PC1250-8 Hydraulic Pump

Product Descriptio

PC1250LC-8 S/N 30158-UP



Pos.	Part No	Qty	Parts name	Comments
	708-2L-00681	[1]	Pump Assembly Komatsu	196 kg.
			["SN: 30254-UP"] analogs:["7082L00680"] \|$0.
	708-2L-00680	[1]	Pump Assembly Komatsu	196 kg.
			["SN: 30158-30253", "SCC: A1"] analogs:["7082L00681"] \|$1.
	708-2L-01680	[1]	Pump Subassembly Komatsu China
			["SN: 30158-UP", "SCC: C2"] \|$2.
1	708-2L-22430	[1]	Shaft,Front Komatsu	3.111 kg.
			["SN: 30158-UP", "SCC: C2"]
2	708-2L-32150	[1]	Bearing Komatsu	0.6 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["7082E12152", "7082L22150", "7082512731"]
3	708-2E-05040	[1]	Washer Kit Komatsu	0.101 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["7082E12190"]
4	708-25-12790	[1]	Ring, Snap Komatsu	0.006 kg.
			["SN: 30158-UP", "SCC: C2"]
5	708-25-52861	[1]	Seal, Oil Komatsu China	0.078 kg.
			["SN: 30158-UP"] analogs:["7082552860", "7067340920"]
6	708-25-12812	[1]	Housing Komatsu China
			["SN: 30158-UP", "SCC: C2"]
7	07000-A2080	[1]	O-ring Komatsu	0.003 kg.
			["SN: 30158-UP", "SCC: C2"]
8	708-25-05130	[1]	Shim Kit Komatsu	0.032 kg.
			["SN: 30158-UP", "SCC: C2"]
9	01010-80820	[4]	Bolt Komatsu	0.013 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["801014067", "0101050820", "801015086"]
10	01643-30823	[4]	Washer Komatsu	0.004 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
	708-2L-04151	[1]	Block Assembly,Rear Komatsu OEM	5.26 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["7082L04050", "7082L06370"] \|$19.
13	720-68-19610	[1]	Pin Komatsu	0.002 kg.
			["SN: 30158-UP", "SCC: C2"]
14	04065-04818	[1]	Ring, Snap Komatsu OEM	0.007 kg.
			["SN: 30158-UP", "SCC: C2"]
15	708-2L-23131	[1]	Seat Komatsu	0.073 kg.
			["SN: 30158-UP", "SCC: C2"]
16	708-2L-33160	[1]	Spring Komatsu	0.12 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["7082L23151"]
17	708-7L-13140	[1]	Seat Komatsu	0.02 kg.
			["SN: 30158-UP", "SCC: C2"]
18	708-2L-23351	[1]	Guide, Retainer, Retainer Komatsu OEM	0.14 kg.
			["SN: 30158-UP", "SCC: C2"]
19	708-2L-23360	[3]	Pin Komatsu	0.003 kg.
			["SN: 30158-UP", "SCC: C2"]
20	708-2L-33340	[1]	Retainer, Shoe Komatsu OEM	0.3 kg.
			["SN: 30158-UP", "SCC: C2"]
21	708-2L-33310	[9]	Piston Subassembly Komatsu OEM	0.211 kg.
			["SN: 30158-UP", "SCC: C2"] analogs:["7082L23313"]

Model	Hydraulic Pump
PC27MR-2	708-1S-00262/708-1S-00261/708-1S-00271/708-1S-00270
PC35MR-3	708-3S-00720
PC130-7	708-1L-00650
PC200-7	708-2L-00300
PC220-7	708-2L-00112
PC200-8	708-2L-00490/708-2L-00501/708-2L-00500
PC220-8	708-2L-00790/708-2L-00600
PC300-7/PC350-7/PC360-7	708-2G-00024/708-2G-00023/708-2G-00022
PC300-8/PC350-8	708-2G-00700
PC400-7	708-2H-00460/708-2H-00032/708-2H-00031/708-2H-00030
PC450-7	708-2H-00450/708-2H-00027/708-2H-00026/708-2H-00022
PC400-8/PC450-8	708-2H-00027/708-2H-00026

Brand	Model
	PC40, PC60-5-6-7, PC100, PC120, PC130, PC240, PC200-1-3-5-6, PC220-1-3-5, PC300-3-5, PC4001-3-5, D20, D30, D31, D50, D60, D75, D80 (D85), D155
Hita	EX40, EX60, EX150, EX100M, EX100, EX120, EX150, EX200-1-2-3, EX300-1-3-5, EX400, UH08, UH07
	E110B, E200B (E320), E240 (MS180), E300B, E330, D3C, D5, D5B, D5D, D6C, D6D, D6H, D7G, D8K
Dae	DH220, DH280,
Hyun	R200, R210
Ka	HD250, HD400 (HD450), HD500, HD550, HD700 (HD770), HD800, HD820, HD850, DH880, HD1020, HD1220 (HD1250), HD1430, DH1880
Kobel	SK07N2, SK07-7SK200, SK220, SK300, SK320
Sumi	SH120, SH200, SH280, SH300, SH400
Mitsu	MS110, MS120, MS180
Sam	SE55, SE210

Maintenance

The excavator hydraulic pump is an important part of the excavator. Regular maintenance can extend the service life of the pump and ensure the normal operation of the excavator. The following are some maintenance recommendations for excavator hydraulic pumps:

1. Change hydraulic oil regularly: The normal operation of a hydraulic pump requires cleanliness and proper lubriion. Regularly changing hydraulic oil can prevent impurities and contaminants from damaging the pump. Follow the correct hydraulic oil change interval according to your excavator owner's manual or manufacturer's recommendations.
2. Check the hydraulic oil filter: The function of the hydraulic oil filter is to remove impurities and contaminants in the hydraulic system. Regularly check the condition of the hydraulic oil filter and replace it as necessary. A clogged filter will reduce the efficiency of the hydraulic system and increase the load on the pump.
3. Check the seals: The pump seals include O-rings, gaskets, etc. Regularly check the wear of these seals, and if they are found to be worn or damaged, they should be replaced in time to prevent leakage and reduced pump performance.
4. Check for leaks: Check the hydraulic pump and hydraulic system regularly for leaks. Leaks can cause the loss of hydraulic oil, reduce the efficiency of the system, and may cause other malfunctions. When leaks are discovered, they should be repaired promptly.
5. Pay attention to the working temperature of the hydraulic pump: too high working temperature will have adverse effects on the hydraulic pump. Ensure that the cooling system of the hydraulic system is working properly and avoid long-term overload operation to control the operating temperature of the hydraulic pump.
6. Clean the hydraulic pump regularly: Cleaning the hydraulic pump regularly can remove dirt and impurities attached to the pump and keep the pump clean. When cleaning, use an appropriate detergent and be sure to rinse thoroughly after cleaning.
7. Pay attention to the vibration and noise of the hydraulic pump: Abnormal vibration and noise may be a sign of problems with the hydraulic pump. Regularly check the vibration and noise of the hydraulic pump. If any abnormality is found, repair or replace it in time.
Please note that before performing any maintenance work, it is recommended to refer to the excavator's manual or consult a professional technician to ensure that correct methods and procedures are followed.

Product Paramenters

Theory

1. Heat dissipation and cooling: The fan pump generates airflow by rotating the fan, introducing the surrounding cold air into the engine area, and taking away the heat generated by the engine. This helps maintain the engine's normal operating temperature range and prevent overheating.
2. Coolant circulation: The fan pump of the excavator usually also contains a water pump, which is used to draw coolant (usually a mixture of water and coolant) from the engine cooling system and send it to the fan. The coolant dissipates heat when it comes into contact with the air and is then circulated back to the engine, continuing to reduce engine temperature.
3. Cleaning effect: The air flow of the fan pump can also help remove dust, sand and other debris around the engine. If these debris accumulate on the engine, they may hinder heat dissipation and affect the normal operation of the engine.

About Xinfeng Machinery (XF) parts:

Excavator Parts Komatsu 708-2L-00681 708-2L-00680 PC1250-8 Hydraulic Pump

Advantages

Warehouse Display

Packaging and Delivery

FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.

2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998

3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.

4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.

5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6. Which shipping term you can supply?

A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)

7. What is your MOQ?
A: Small order and sample order are acceptable

8. Do you have any After-Sales service?
A: Yes!Our
