Brand Name : | |
Model Number : | 320 326 GC 340 330 350 320 GX 333 GC 326 330 GC 336 333 320GX 323 FM568 OTHER 320 GC 330D 336D |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 500-Sets/month |
Delivery Time : | 3-5 days |
MOQ : | 1 Piece |
320 326 GC 340 330 350 320 GX 333 GC 326 330 GC 336 333 320GX 323 FM568 OTHER 320 GC 330D 336D
Product Descriptio

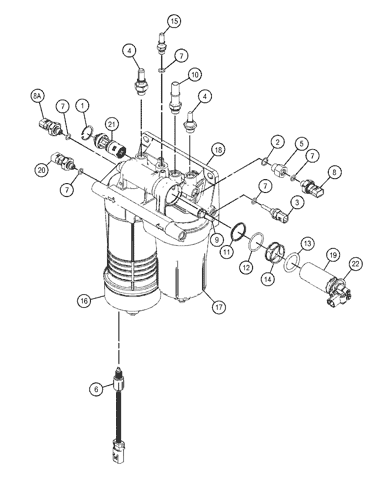

SIS | ||||
Pos. | Part No | Qty | Parts name | Comments |
1 | 199-7560 | [1] | RING-RETAINING | |
2 | 228-7102 | [1] | SEAL-O-RING | |
3 | 238-0112 | [1] | SENSOR GP-TEMPERATURE (FUEL) | |
4 | 361-7347 Y | [2] | CONNECTION GP-FUEL | |
5 | 433-4841 | [1] | ADAPTER | |
6 | 439-5039 | [1] | SENSOR GP-LIQUID LEVEL (WATER IN FUEL) | |
7 | 277-4993 | [5] | SEAL-O-RING | |
8 | 320-3060 | [1] | SENSOR GP-PRESSURE (FUEL FILTER OUTLET) | |
8A. | 320-3060 | [1] | SENSOR GP-PRESSURE (FUEL FILTER INLET) | |
9 | 356-3986 | [1] | CONNECTOR AS | |
277-4993 | [1] | SEAL-O-RING | ||
10 | 492-9114 | [1] | NIPPLE AS | |
228-7102 | [1] | SEAL-O-RING | ||
492-9113 | [1] | FITTING | ||
11 | J | [1] | SPRING-WAVE | |
12 | J | [1] | SEAL-O-RING | |
13 | 511-4824 J | [1] | SEAL-O-RING | |
14 | J | [1] | SPACER | |
15 | 515-6467 | [1] | CONNECTION | |
16 | 523-4986 | [1] | HOUSING AS (FUEL, WATER SEPARATOR) | |
460-5302 | [1] | KIT-DRAIN (FUEL FILTER, WATER SEPARATOR) | ||
(INCLUDES DRAIN, KNOB & SEAL) | ||||
523-4987 | [1] | ELEMENT-WATER SEPARATOR | ||
17 | 523-4988 | [1] | HOUSING AS-FUEL (SECONDARY) | |
354-5833 | [1] | KIT-DRAIN (FUEL FILTER) | ||
489-7503 | [1] | HOUSING-FUEL FILTER | ||
509-5694 | [1] | FILTER ELEMENT-FUEL (SECONDARY) | ||
18 | [1] | BASE-FUEL FILTER | ||
19 | 526-2037 J | [1] | PUMP AS-FUEL | |
20 | 533-2245 | [1] | SENSOR AS-PRESSURE (FUEL, WATER SEPARATOR) | |
21 | 539-7999 | [1] | VALVE AS-CHECK | |
22 | 6V-7723 | [1] | RING-RETAINING | |
AVAILABLE REPAIR KIT(S): | ||||
562-1852 J | [1] | KIT-PUMP (WATER SEPARATOR)(WATER SEPARATOR) | ||
(INCLUDES PUMP AS, O-RING SEALS, SPRING & SPACER) | ||||
J | KIT MARKED J SERVICES PART(S) MARKED J | |||
Y | SEPARATE ILLUSTRATION |
Theory
Excavators usually use electronic pump systems to provide hydraulic power to drive various hydraulic actuators of the excavator, such as digging arms, buckets and walking devices. Here are the basic principles of the electronic pump system:
Motor drive: The core of the electronic pump system is the motor,
usually an electric hydraulic pump or an electric hydraulic pump
combination. The motor drives the pump to work through electricity
to generate hydraulic power.
Hydraulic pump: The hydraulic pump is responsible for converting
mechanical energy into hydraulic energy. It generates fluid flow by
rotating mechanical elements (such as gears, plungers or blades).
The function of the hydraulic pump is to generate sufficient
pressure to push the hydraulic oil to various actuators in the
hydraulic system.
Hydraulic system: The hydraulic pump transmits hydraulic power to
various actuators of the excavator through the hydraulic system.
The hydraulic system consists of a hydraulic oil tank, hydraulic
pipelines, hydraulic valves and hydraulic cylinders. The hydraulic
oil is sucked from the tank, generates pressure through the
hydraulic pump, and is transmitted through the pipeline to the
hydraulic actuator that needs to perform the work.
Control unit: The electronic pump system is usually equipped with a
control unit to monitor and control the operation of the hydraulic
system. The control unit can adjust the pump speed and the working
pressure of the hydraulic system according to the operator's
instructions or preset programs to meet the needs of different
working conditions.
Sensors and feedback mechanisms: Electronic pump systems can also
be equipped with sensors and feedback mechanisms to monitor the
working status of the hydraulic system and the position or load of
the actuator. These sensors can provide real-time data to the
control unit for operations such as fault diagnosis, performance
optimization and safety protection.
In general, the electronic pump system drives the hydraulic system
through an electric pump, converts mechanical energy into hydraulic
energy, and monitors and controls the hydraulic system through
components such as control units and sensors. This can provide
efficient, precise and reliable hydraulic power to meet the needs
of excavators under various working conditions.
About Xinfeng Machinery (XF) parts:
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998
3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter
getting payment. lf not in stock, we will inform you thetime
requlred.
6. Which shipping term you can supply?
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes!Our
![]() |
