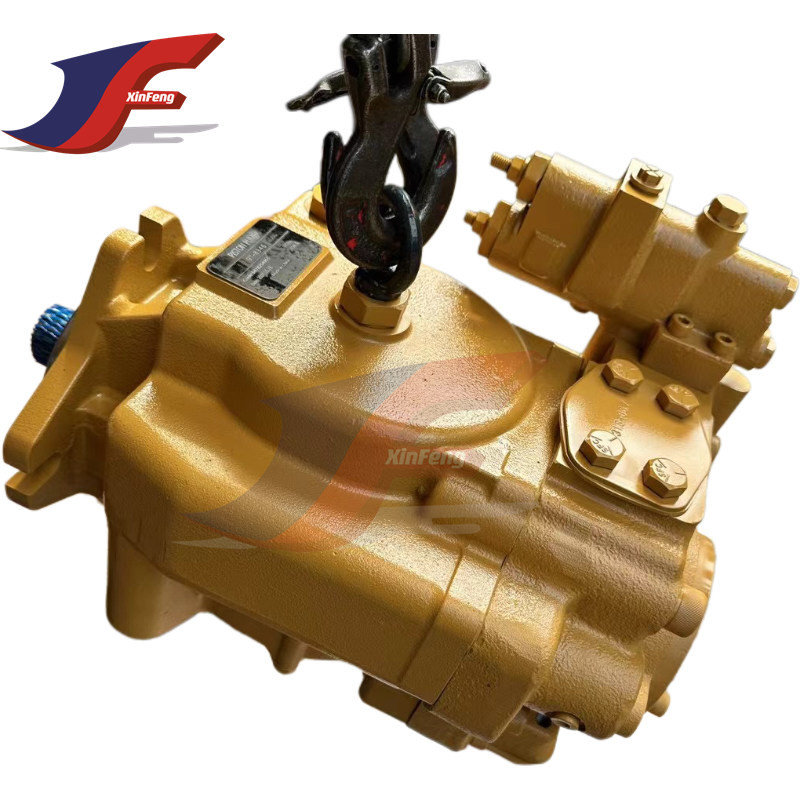

Hydraulic Pump 121-4312 1214312 9T-8346 9T8346 6E-6627 6E6627 For D8N D8R

Ask Lasest Price
Brand Name :
Model Number :	D8N D8R
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	500-Sets/month
Delivery Time :	3-5 days
MOQ :	1 Piece

Add to Cart

Product Details
Company Profile

Hydraulic Pump 121-4312 1214312 9T-8346 9T8346 6E-6627 6E6627 For D8N D8R

Hydraulic pump 121-4312 1214312 9T-8346 9T8346 6E-6627 6E6627 for D8N D8R

Product Descriptio

Hydraulic Pump 121-4312 1214312 9T-8346 9T8346 6E-6627 6E6627 For D8N D8R

9T8346 PUMP GP-PISTON Parts scheme

Pos.	Part No	Qty	Parts name	Comments
1	6E-4248	[1]	SHAFT
2	6E-4237	[1]	BEARING
3	6E-4224	[1]	PLUG-SWASHPLATE
4	033-6036	[1]	SEAL-O-RING
5	9S-4190	[1]	PLUG-O-RING (7/8-14-THD)
6	9T-1699	[1]	SPRING
7	9T-1710	[1]	POPPET
8	9T-1636	[1]	SEAT
9	6E-4227	[1]	COVER
10	6V-8837 M	[3]	BOLT (M6X1X16-MM)
11	4F-4097	[1]	SEAL-O-RING
12	6E-4236	[1]	BEARING
13	3E-4302 M	[2]	SCREW-FLAT HEAD (M4X0.7X10-MM)
14	8T-5039	[3]	SEAL-O-RING
15	4H-1440	[2]	PIN-SPRING
16	8T-0343 M	[3]	BOLT-SOCKET HEAD (M12X1.75X55-MM)
17	3E-8008 M	[1]	BOLT-SOCKET HEAD (M16X2X90-MM)
18	6E-6044 Y	[1]	VALVE GP-PUMP CONTROL (PRESSURE, FLOW COMPENSATOR)(IMPLEMENT PUMP OUTLET CONTROL)
19	6E-4245	[1]	HOUSING
20	6V-8337 M	[4]	BOLT-SOCKET HEAD (M8X1.25X35-MM)
21	033-6027	[1]	SEAL-O-RING
22	7K-8876	[1]	CUP-BEARING
23	6E-4213	[1]	KIT-BIAS PISTON (PUMP)
			(INCLUDES SPRING, ROD, PISTON & PACKING)
24	6E-4214	[1]	SPRING-BIAS
25	6E-4216 Y	[1]	ROTATING GP-PUMP (IMPLEMENT)
26	6E-4225	[1]	GASKET
27	7L-9061	[2]	SEAL-O-RING
28	3E-7417	[4]	PLUG
29	8T-7876	[4]	SEAL-O-RING
30	6E-4234	[1]	PLATE-VALVE
31	005-0471	[1]	CONE-BEARING
32	005-0469	[1]	CUP-BEARING
33	103-6282 B	[1]	SHIM PACK (INCLUDES 17-SHIMS)
34	9T-1652	[1]	PIN
35	6E-4215	[1]	KIT-PISTON (PUMP)
			(INCLUDES PACKING, ROD & PISTON)
36	6E-4221 Y	[1]	SWASHPLATE GP
37	6L-8797	[2]	RING-RETAINING
38	9X-7547	[2]	SEAL-LIP TYPE
39	7K-8877	[1]	CONE-BEARING
40	6E-4247	[1]	HEAD
41	6E-2943	[1]	PLUG
42	6E-4321	[1]	SPACER (36X48X2.5-MM THK)
43	3E-8007 M	[1]	BOLT-SOCKET HEAD (M12X1.75X90-MM)
44	219-6915	[1]	BOLT (M16X2X95-MM)
	B		USE AS REQUIRED
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION

Product Paramenters

Maintainance

The fan pump of a Komatsu bulldozer is an important component that requires regular maintenance to ensure its normal operation and extended service life. Here are some basic steps to maintain the fan pump of a Komatsu bulldozer:

Cleaning the fan pump: It is very important to clean the fan pump regularly because dust, mud and other impurities may clog the air inlet and outlet of the fan pump. Use compressed air or a water flusher to remove dirt and impurities accumulated on the fan pump.

Check the drive belt: Check the tightness and wear of the drive belt. If the drive belt is loose or worn, it should be replaced in time.

Lubrie the bearings: The bearings of the fan pump need to be lubried regularly to reduce friction and wear. Use appropriate lubriing oil or grease to lubrie the bearings.

Check the cooling system: Make sure the cooling system of the fan pump is working properly. Check the water level and quality of the coolant, ensure sufficient coolant supply, and clean or replace the filter.

Check the safety device: Make sure the safety device of the fan pump is working properly, such as the overheat protection device and the pressure switch. If a fault or damage is found, it should be repaired or replaced in time.
