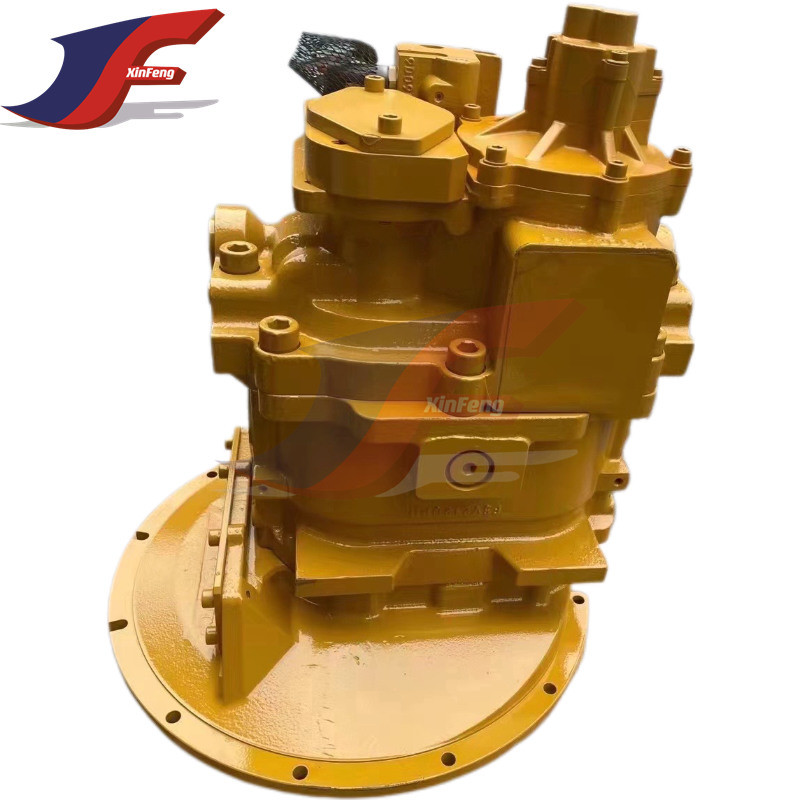

345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator

Guangzhou XinFeng Engineering Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator from wholesalers

    Buy cheap 345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator from wholesalers
    • Buy cheap 345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator from wholesalers
    • Buy cheap 345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator from wholesalers
    • Buy cheap 345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator from wholesalers
    • Buy cheap 345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator from wholesalers

    345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator

    Ask Lasest Price
    Brand Name :
    Model Number : 345D E349D
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500-Sets/month
    Delivery Time : 3-5 days
    MOQ : 1 Piece
    • Product Details
    • Company Profile

    345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator

    345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 for excavator

    345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator

    Product Descriptio

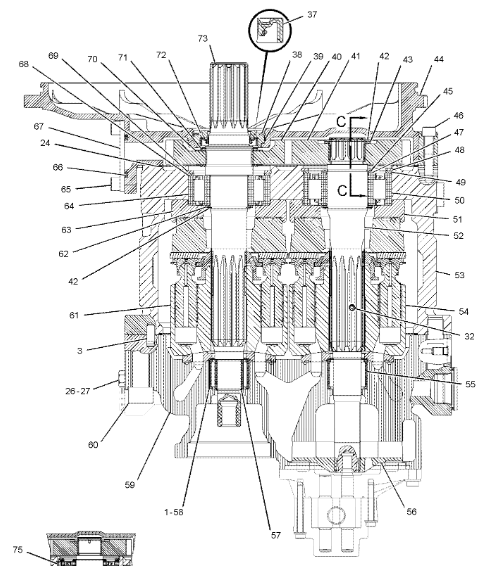

    Pos.Part NoQtyParts nameComments
    1295-9693[1]BEARING-NEEDLE
    2252-9167 M[8]BOLT-SOCKET HEAD (M8X1.25X30-MM)
    3247-8985[4]DOWEL
    4247-8729[2]COVER
    5242-6919 M[2]SETSCREW (M20X2.5X56-MM)
    6451-2184 M[2]NUT (M20X2.5-THD)
    76V-8200 M[8]BOLT-SOCKET HEAD (M12X1.75X35-MM)
    87I-8166[2]STOPPER
    9109-1296[2]SEAL-O-RING
    107I-8172[2]RING-BACKUP
    11242-6914[2]PISTON-SERVO
    12247-8712[2]PIN AS
    13295-9506[18]SPRING
    14109-1294[2]SEAL-O-RING
    157I-8171[2]RING-BACKUP
    16242-6915[2]STOPPER
    17095-0965[12]PLUG
    18095-0966[2]PLUG
    19242-6918 M[2]NUT (M20X2.5-THD)
    20200-3292 M[2]SETSCREW (M20X2.5X90-MM)
    21249-1308 M[1]BOLT-SOCKET HEAD (M22X2.5X180-MM)
    22234-4539[2]DOWEL
    23249-1306 M[9]BOLT-SOCKET HEAD (M22X2.5X60-MM)
    24326-4415[2]GASKET
    25295-9518[2]PISTON AS
    26110-5525[4]PLUG
    27214-7568[4]SEAL-O-RING
    28295-9510[2]PLATE
    29295-9504[2]PLATE
    30295-9505[2]RETAINER-BALL
    31295-9521[2]SWASHPLATE AS
    327I-8084[21]PLUG
    337I-8164[4]ORIFICE (1/16-NPTF)
    34095-0882[4]PIN-SPRING
    35247-8786[2]DOWEL
    36347-6530[9]SEAL-RECTANGULAR
    37295-9695[1]SEAL-LIP TYPE
    38095-0944[1]RING-RETAINING
    39249-6657[1]SEAL-O-RING
    40295-9508[1]GEAR-DRIVE (31-TEETH)
    41295-9509[1]GEAR-DRIVEN (31-TEETH)
    428T-4241[2]RING-RETAINING
    43295-9501[1]SPACER (49.5X73X3-MM THK)
    44295-9507[1]FLANGE
    45096-5516[2]RING-RETAINING (EXTERNAL)
    468T-0343 M[11]BOLT-SOCKET HEAD (M12X1.75X55-MM)
    47295-9502[2]SPACER (55X69X3-MM THK)
    48295-9516[1]RING
    49295-9503[1]SPACER (104X120X3.2-MM THK)
    50295-9500[1]BEARING-ROLLER
    51295-9511[1]PLATE
    52295-9499[1]SHAFT-DRIVEN
    53322-8736[1]BODY
    54311-9506[1]BARREL AS-PUMP
    55247-8715[1]BEARING-NEEDLE
    56247-8721[1]IMPELLER
    57247-8730[1]RING-RETAINING
    58247-8944[1]BUSHING
    59295-9694[1]BLOCK-PORT
    60249-1307 M[2]BOLT-SOCKET HEAD (M22X2.5X95-MM)
    61311-9505[1]BARREL AS-PUMP
    62247-8719[1]SPACER (50X64X3-MM THK)
    63247-8725[1]PLATE
    64247-8713[1]BEARING-ROLLER
    658T-9080 M[8]BOLT-SOCKET HEAD (M12X1.75X20-MM)
    66249-6670[1]SEAL-O-RING
    67295-9512[1]COVER
    68247-8720[1]SPACER (95X110X3.2-MM THK)
    69247-8787[1]RING-RETAINING
    70247-8717[2]SPACER (65X90X1-MM THK)
    71095-0929[2]RING-RETAINING
    72247-8726[1]COVER
    73295-9498[1]SHAFT-DRIVE
    74206-9291[2]SEAL-O-RING
    75295-9517[1]DOWEL
    76295-9497 Y[2]HEAD GP-PUMP
    77289-7912 Y[1]PUMP GP-GEAR (PILOT)
    78225-4518 Y[1]VALVE GP-SOLENOID (PUMP CONTROL)




    Product Paramenters


    Maintainance

    Carter excavator is a heavy-duty construction machinery, and regular maintenance is very important for its normal operation and extended service life. Here are some maintenance recommendations for Carter excavators:

    Cleaning: Regularly clean the external and internal parts of the excavator, including the body, engine, hydraulic system, etc. Use a high-pressure water gun or air pressure spray gun to remove dust, mud and other debris.
    Lubriion: Make sure that all lubriion points of the excavator are properly lubried. Use appropriate lubricants and lubrie according to the manufacturer's recommendations.
    Hydraulic system: Regularly check the oil level and oil quality of the hydraulic system. If necessary, replace the hydraulic oil and check whether the seals of the hydraulic system are intact. Ensure the normal operation of the hydraulic system to avoid failures and leaks.
    Engine: Regularly replace the engine oil and filter. Check the water level and quality of the coolant and ensure the normal operation of the cooling system. Regularly check the engine's belts, batteries and wire connections to ensure that they are working properly.
    Air system: Check the excavator's air system, including the air filter and air intake. Clean or replace blocked or damaged filters, and ensure that the air intake is unobstructed to keep the engine running normally.
    Tires or tracks: Check the wear of the excavator's tires or tracks and replace them as needed. Ensure the proper condition of the tires or tracks to provide good traction and stability.
    Control system: Regularly check the excavator's control system, including joysticks, pedals and dashboard. Ensure that all controllers and instruments are working properly and repair any malfunctions in a timely manner.



    About Xinfeng Machinery (XF) parts:




    345D E349D Hydraulic Main Pump 295-9663 Hydraulic Pump K5V212 For Excavator

    Advantages


    Warehouse Display



    Packaging and Delivery



    FAQ
    1. How to quickly and accurately buy products what lneeded?
    A: Provide the original parts number to us to check.

    2. How long have you been in the excavator
    A: We are engaged in excavator parts since 1998


    3. lfI don't know the part number,what shouldI do?
    A: Please send us size and pictures of old products.

    4. What is the warranty of the products?
    A: The warranty is 6/12 Months based on the specific product.


    5. How long is your delivery time?
    A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

    6. Which shipping term you can supply?

    A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)


    7. What is your MOQ?
    A: Small order and sample order are acceptable


    8. Do you have any After-Sales service?
    A: Yes!Our
