Brand Name : | |
Model Number : | PC350-8M0 PC350LC-8M0 |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 500-Sets/month |
Delivery Time : | 3-5 days |
MOQ : | 1 Piece |
Product Descriptio
Pos. | Part No | Qty | Parts name | Comments |

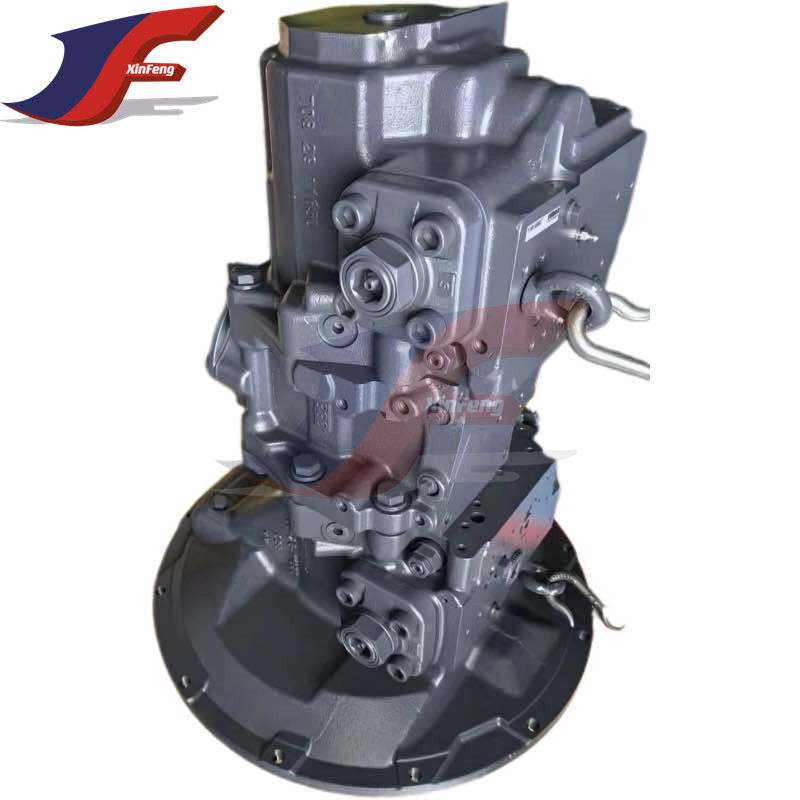

708-2G-00180 | [1] | Pump Assembly Komatsu China | ||
["SN: 80001-UP"] |$0. | ||||
708-2G-01180 | [1] | Pump Subassembly Komatsu China | ||
["SN: 80001-UP", "SCC: C2"] |$1. | ||||
1 | 708-2G-12650 | [1] | Shaft Komatsu China | |
["SN: 80001-UP", "SCC: C2"] | ||||
2 | 708-2G-12252 | [1] | Bearing Komatsu China | 0.875 kg. |
["SN: 80001-UP", "SCC: C2"] analogs:["7082G12251"] | ||||
3 | 708-2G-05010 | [1] | Washer Kit Komatsu | 0.75 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
4 | 708-1F-12270 | [1] | Ring, Snap Komatsu | 0.014 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
708-2G-04720 | [1] | Block Assembly Komatsu China | ||
["SN: 80001-UP", "SCC: C2"] |$9. | ||||
7 | 708-18-13230 | [1] | Pin Komatsu | 0.01 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
8 | 04065-05520 | [1] | Ring, Snap Komatsu | 0.01 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
9 | 708-2G-13131 | [1] | Seat Komatsu | 0.1 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
10 | 708-2G-13152 | [1] | Spring Komatsu | 0.2 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
11 | 708-2G-13141 | [1] | Seat Komatsu | 0.02 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
12 | 708-2G-13510 | [1] | Guide, Retainer Komatsu OEM | 0.21 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
13 | 708-2H-23360 | [3] | Pin Komatsu | 0.006 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
14 | 708-2G-13341 | [1] | Retainer, Shoe Komatsu OEM | 0.39 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
15 | 708-2G-13810 | [9] | Piston Subassembly Komatsu China | |
["SN: 80001-UP", "SCC: C2"] | ||||
708-2G-04670 | [1] | Cradle Subassembly Komatsu | 0.000 kg. | |
["SN: 80001-UP", "SCC: C2"] |$21. | ||||
18 | 04020-01434 | [1] | Pin, Dowel Komatsu | 0.044 kg. |
["SN: 80001-UP", "SCC: C2"] | ||||
19 | 07000-B1009 | [1] | O-ring Komatsu China | 0.001 kg. |
["SN: 80001-UP", "SCC: C2"] analogs:["7082L23910"] | ||||
20 | 01252-61230 | [6] | Bolt, Hexagon Socket Head Komatsu | 0.044 kg. |
["SN: 80001-UP", "SCC: C2"] |
Maintainance
Here are some suggestions for the maintenance of the hydraulic pump of the Komatsu 350-8 excavator:
Regularly change the hydraulic oil: The normal operation of the
hydraulic pump depends on high-quality hydraulic oil, so it is
essential to change the hydraulic oil regularly. Change the
hydraulic oil at the prescribed time intervals or working hours
according to the manufacturer's recommendations, and make sure to
use hydraulic oil that meets the specifiions.
Clean the oil tank: Clean the hydraulic oil tank regularly to
ensure that there are no impurities and dirt in it. This prevents
impurities from entering the hydraulic system and protects the
normal operation of the hydraulic pump and other hydraulic
components.
Check the hydraulic filter: The hydraulic filter is essential to
keep the hydraulic system clean and operating properly. Check the
condition of the hydraulic filter regularly to ensure that it is
not blocked or damaged. Replace the filter when necessary.
Check the oil temperature and pressure: The operating temperature
and pressure of the hydraulic pump should be within the normal
range. Make sure they are within the normal range by regularly
checking the temperature and pressure indiors on the dashboard. If
there is an abnormality, troubleshooting and repair are required.
Check for leaks: Check the hydraulic system regularly for leaks.
Leaks may cause the hydraulic pump to perform poorly or damage
other hydraulic components. If a leak is found, the cause should be
found and repaired as soon as possible.
Ensure the hydraulic pump is cool: The hydraulic pump needs to be
properly cooled to prevent overheating. Ensure the cooler of the
hydraulic system is clean and regularly check the cooling system
for proper operation.
Regular maintenance: Perform regular maintenance according to the
maintenance schedule provided by the manufacturer. This may include
replacing seals, checking the internal parts of the pump and
cleaning the hydraulic system.
Please note that the above suggestions are for reference only. It
is best to refer to the owner's manual of the Komatsu 350-8
excavator or contact Komatsu or its authorized service center for
more detailed and specific maintenance instructions.
About Xinfeng Machinery (XF) parts:
Advantages
Warehouse Display
Packaging and Delivery
FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.
2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998
3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.
4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.
5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter
getting payment. lf not in stock, we will inform you thetime
requlred.
6. Which shipping term you can supply?
7. What is your MOQ?
A: Small order and sample order are acceptable
8. Do you have any After-Sales service?
A: Yes!Our
![]() |
